How to Operation and use FRANLI bead mill

Bead Mill(sand mill) helps many factories to improve production. Grinding for low viscosity, well-flowing material. Self-cycling cooling system. Don’t need the cooling pump. Franli produces Disc Bead Mill, Pin Bead mill, Turbine Nano Bead mill, etc.



bead mill

1. First-time start (commissioning)

After the equipment is finished to install, you should carry out the commissioning.

The detailed steps are as following:

(1)Add the steam turbine oil into the mechanical sealing chamber of the sand mill.

(2)Check whether the main motor and pump motor circuits are ON.

(3)Open the water supplying valve and observe whether the water consumption reaches the user requirement.

(4)Open-air supply valve

(5)Add the mill mediate
The core part of bead mill-roller
Open the one or two sand adding covers on the upper part of the milling cylinder, add the screen-filtered milling mediate. For its filling volume, grain dia, and its material, you can refer to the introduction of this instruction and decided the product quality required by customers.

(6)Adjust the V belt tightness and the control range of the meter.

(7)Cleaning: Due to the factory in order to keep the machine in the assembly process smoothly, often with oil, butter, and bonding agent and so on into the assembly process, so in order to guarantee the quality of the product must be clean to the whole system, including line feed pump grinding medium and grinding block and so on, the specific method is: prevent into 40 to 50 liters of solvent to the material canister, the solvent pump will pump into the grinding block, start the main motor, adjustable speed to 200 ~ 300 RPM, about 2 minutes after downtime. Then open the lid of the lower drainage hole grinding cylinder, the cylinder was first used in the solvent drained and then rotate the lid, with about 30 new solvents to clean up the second time during which start the second main motor (about 1 minute at a time), and then open the drainage opening lid row of dry cleaning solvent will tighten, cleaning work is done.

(8)After cleaning work is finished, you can operate the machine with the material. The feeding speed of the material-in pump should be decided according to the product quality and set milling cycle number.

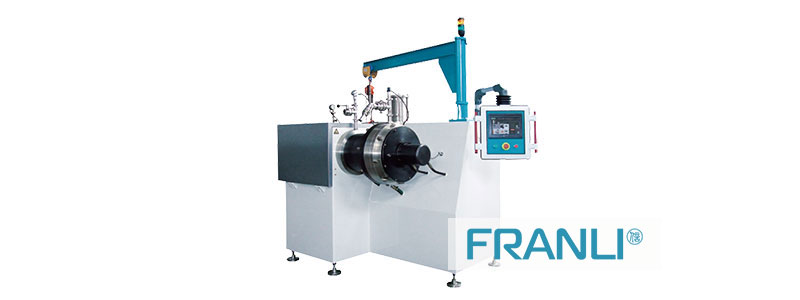

horizontal sand mill

2. The operational rule of the machine

Check before start

(1)The lubricating oil level is normal.

(2)V belt tightness is proper.

(3)If the sand mill has been not used for a long time, please open its back shell and bring the belt wheel rotating for 3~4 cycles by your hand.

(4)No other abnormal conditions.

Start

(1)Turn the general switch.

(2)Link the outlet of a material cylinder with the inlet of material-in pump through a hose. Open the outlet valve of the material cylinder.

(3)Start the water supply valve and air supply valve.

(4)Start the material-in pump till the pressure meter displays the material flowing.

(5)Start the main motor, confirm no abnormal conditions.

(6)Start the main motor, confirm no abnormal conditions.

(7)Adjust the pump speed.

(8)Adjust the water speed.

After the machine runs smoothly and stable, check the material quality and make adjustments.

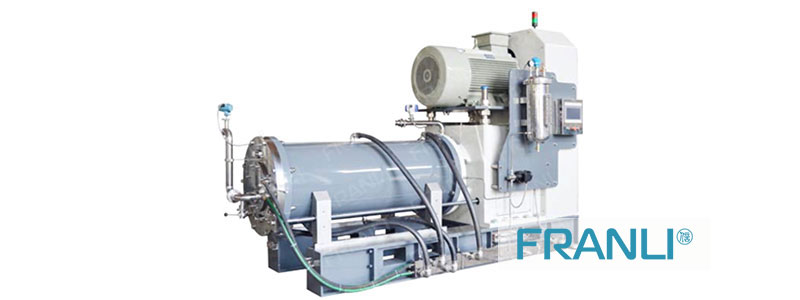

Lab Bead Mill
Note:

Water speed:

High: material outlet temperature is low.

LOW: material outlet temperature is high.

Pump speed

High: material-in volume is big, quality is low, outlet temperature is

Low: material-in volume is small, quality is high, outlet temperature is low.

Piston position

In: the quality is improved, the produced heat is high.

Out: the quality falls down, the produced heat is low.
dyno mill

3.Stop the machine

(1)Scrap out the material barrel surrounding and bottom, add the solvent to make circumfluence twice.

(2)Stop the main motor

(3)Adjust to reduce the material-in pump speed

(4)Stop pump

(5)Close the water supply valve and the air supply valve

(6)Close the material cylinder outlet valve

(7)Disassemble the material convey hose, close the main switch

(8)Clean up the equipment surface

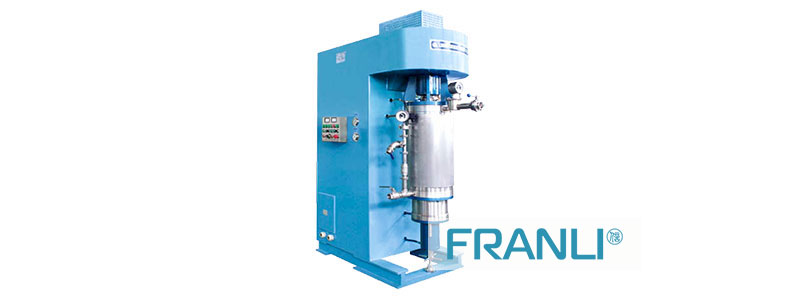

Vertical bead Mill
1. Clear varnish, a binder, or a similar cleaning liquid (dependent on the product used) is conveyed continuously through the grinding tank by the pump. The cleaning process is over as soon as the cleaning liquid is discharged through the grinding tank in clean condition.

When cleaning is made with cleaning liquids foreign to the product, it has to be checked if the seals can cope with the cleaning liquid. When cleaning with pure solvent, water, or other liquids with low lubricating abilities, the agitator must be switched on only for a short time, because in this case, excessive wear occurs.

2.All pipelines have to be cleaned thoroughly in order to avoid contamination during the changing of the batch, also pipelines might plug when processing products that harden within a short period of time.

3.In order to keep the sealing surfaces of the sliding rings in contact pressure, the sealing pressure has to be maintained after switching off the machine as long as the grinding tank is filled with liquid.

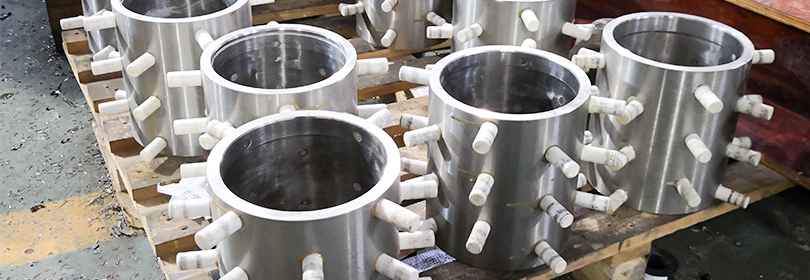

bead mill core parts

Operational Speeds

Constant speed machines can be adjusted by the use of different drive pulleys. For machines with adjustable gear, the range of adjustment of the agitator drive can be limited. (See “Additional Instructions” for the variable drive.) The bigger the bulk of grinding media and the higher the viscosity of the product, the lower is the operational speed that has to be selected. Higher speeds result in higher grinding capacity, however, wear increases super proportionally.

If the speeds stated in the above table are exceeded, the grinding system might be damaged.

Operational Parameters

This comparison shall outline the basic processes in the procedures of the grinding process and alleviate the settling in period. Due to the great variety of products we did not give any values in the tables below. When regarding the parameters throughput capacity and temperature the product demand quality is kept constant.

Because the parameters frequently influence each other, only one value should be changed at one time.

(1) Changes in the filling level should be made in steps of max. 2 % of the tank volume.

(2) This is valid only for dispersions with easily breakable amorphous solid materials or agglomerates, where due to the speed and the kind of grinding media used the energy is sufficient for breakage (e.g. carbonates, paints, sulfates, etc.). If dispersions with very hard solid materials are concerned, the selection of grinding media has to be made in the opposite direction, because in this case, the energy in the grinding media has to be increased (e.g. iron oxides, strontium ferrites, hard metals, etc.).

(3) The opposite is valid if a highly viscous medium forms an isolating layer at the outer coating.

(4) Assumed viscosity in the grinding tank under working conditions, not in quiescent condition.

(5) The opposite is valid, if the viscosity (see 4)) increases very heavily due to over-grinding.

(6) The current intake could be assigned to the temperature parameter without any problems because their curves are running parallel on the whole.

(7) Should the diameter ratio of the beads exceed the value 1:2 due to wear and refilling of new beads after a longer production process, the whole batch should be replaced, resp. screened. Mixed grinding media often result in worse throughput rates, higher temperatures, and higher wear.

(8) This is essentially valid for dispersing. During comminution grinding contrary tendencies become visible.
Sand mill
