The extruder is matching equipment with a planetary mixer or a multi-functional mixer. Its function is to discharge or sub-pack the high-viscosity materials produced by the mixer and fill the hydraulic filling equipment with certain fluid materials. It is especially suitable for It is used for pressure filling of viscous materials, and has the characteristics of simple structure and convenient operation.
Advantages of Extruder：
- The pressure in the hydraulic cylinder can be adjusted arbitrarily
- The piston rod can stay at any position, and can work continuously under the condition of maintaining and stabilizing pressure
- The design is strict so that the material does not return to the outside
- It has the characteristics of simple structure and convenient operation
- Optional configuration
Hot sale Multi-Shaft Mixer
Guidelines For multi-shaft mixer
FRANLI customized different kinds of multi-shaft mixers for more than 300+ customers. This kind of machine works in the coating industry, medicine industry, cosmetic industry, and other high technology chemical industries.
The extruder is in the form of a single-cylinder type, double-cylinder type, and triple-cylinder lifting cylinder, which is controlled by a torque motor. The material is conveyed from the outlet ball valve on the pressing plate or the outlet at the bottom of the barrel to the pipeline, so as to realize various forms of subcontracting or filling of the material.
The composition principle of the extruder
The extruder is composed of a frame, a lifting frame, an oil cylinder, a pressure plate, a hydraulic system, and an electric control box. The frame and the lifting frame are closed-welded structures of section steel, and the size ratio is appropriate, balanced, and stable. Corresponding oil cylinders are configured according to different types of presses, which are reliable in operation and reasonable in structure. The hydraulic system consists of a motor, a gear pump, a relief valve, and an electromagnetic reversing valve. By operating the electromagnetic reversing valve or the manual reversing valve handle, the oil cylinder can be controlled to drive the pressure plate to complete the pressing material and the return stroke of the pressure plate. Platen
The hydraulic extruder is composed of the base plate, barrel positioning, hydraulic cylinder, beam, motor, gear pump, pressing plate, electric control box, etc.
The hydraulic cylinder can be adjusted arbitrarily within the pressure range of 0-20MPa at all levels, the piston rod can stay at any position, and can work continuously under pressure keeping and constant pressure; device) so that the material does not come back to the outside, and the material in the container can be exhausted and not retained; the lifting support is hydraulically lifted to the top position, which is convenient for the operator to pack and work, and has the characteristics of simple structure and convenient operation.

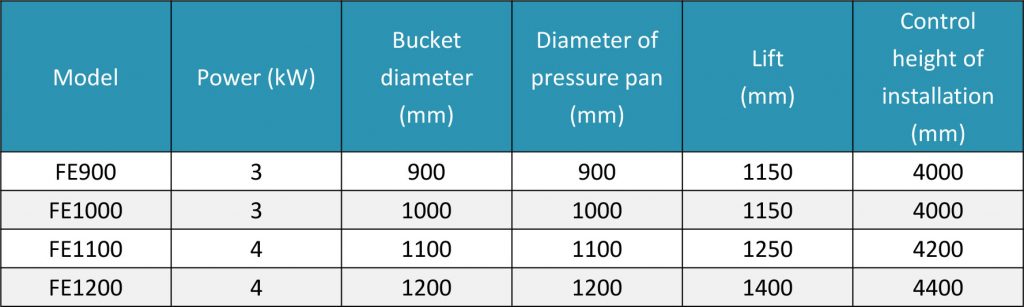

Features of the extruder
Power supply: 380V, 50HZ, or according to customer requirements
Contact material: SS304 stainless steel SS316L stainless steel
Viscosity range: 1000-3000000cps
Pressing method: barrel lift type, barrel fixed type
The extruder is divided into a lifting type with a barrel and a fixed type.
1. Easy to operate and safe
The equipment uses the oil cylinder as a lifting actuator, with a control valve to control the extruder to rise, stop, and descend, with simple operation and high stability; If the barrel is displaced during work and causes a safety accident, an interlocking device can be set to prevent misoperation.
2. Wide range of adaptation and high discharge efficiency
The extruder can automatically press high-viscosity materials to the next process within a few minutes, and process non-flowable materials with a viscosity ranging from tens of thousands to millions of CPS; the use of multiple interchangeable containers and presses can greatly improve the equipment usage.
3. The discharge is clean
The extruder is equipped with a sealing ring that matches the barrel. During the extrusion process, the sealing ring is close to the wall of the barrel, and there is no residue on the wall.
4. Strong non-standard
Various types of non-standard products can be customized, such as explosion-proof type, and vacuum type; according to the discharge form and the height of the discharge port, the lifting extruder with a barrel can be customized, and the material can be customized SS316L stainless steel according to requirements.
How to use the extruder
1. Move the mixing barrel containing the material to the front of the hydraulic extruder, and push it into the position along the track on the lifting plate.
2. Press the up button of the kettle body to make the bottom of the mixing tank exceed the V-shaped positioning point on the U-shaped frame, insert the positioning pin, and pin the kettle body.
3. Open the air release valve of the pressure plate, press the down button of the kettle body, release the gas, close the valve, and the material will be extruded from the discharge port under the kettle body.
4. The working pressure and system pressure of the hydraulic system of the machine:
5. The total pressure and discharge speed of the machine is determined by the system pressure (but the system pressure cannot exceed its maximum value). Hydraulic oil should be replaced regularly according to the usage of the equipment.
