Turn key solution provider

Top Multi-Shaft Mixer Manufacturer

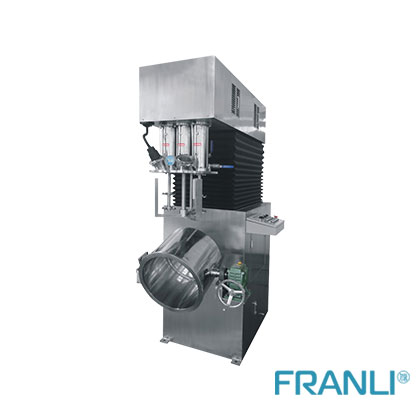

Multi-Shaft Mixer

FRANLI customized different kinds of multi-shaft mixers for more than 300+ customers. This kind of machine works in the coating industry, medicine industry, cosmetic industry, and other high technology chemical industries.
Play Video

Multi-Shaft Mixer Video

FRANLI has two types of the multi-shaft mixer, one is standing floor hydraulic lifting, this type of multi-shaft mixer is easy to move the tanks on the floor. You may need to purchase the hydraulic discharging machine with the filling machine together. Also has a tank with lugs to support the floor. This tank is fixed, and discharging by itself weight, or discharging by the pump. Which is most suitable for your factory, you may discuss with us before ordering this multi-shaft mixer.

Welcome to send inquiry to us and let’s make a win win business together !

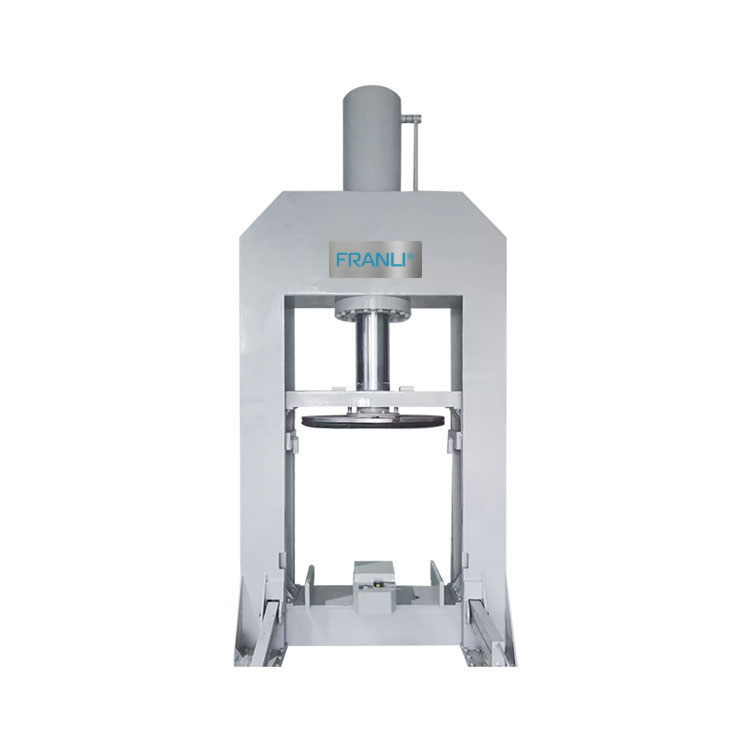

extruder
The extruder is matching equipment with a planetary mixer or a multi-functional mixer. Its function is to discharge or sub-pack the high-viscosity materials produced by the mixer and fill the hydraulic filling equipment with certain fluid materials. It is especially suitable for It is used for pressure filling of viscous materials, and has the characteristics of simple structure and convenient operation.

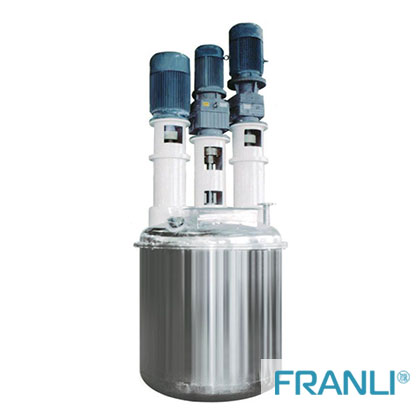

Multi-Shaft Mixer
Muti shaft mixer is widely used in middle and high viscosity materials. It applies to materials with viscosity below 100000 cps and is suitable for the dispersion and mixing of coatings, inks, putty.

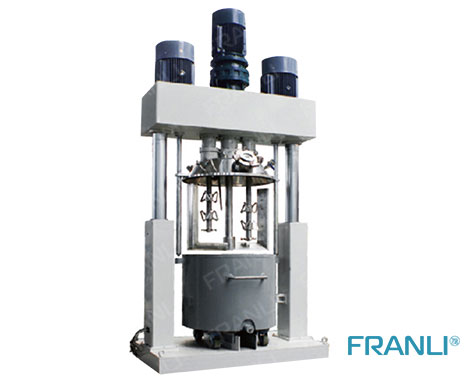

Triple Shaft Mixer
Hydraulic lifting triple shaft mixer (dispersion, stirring, emulsification), this equipment is a product designed by FRANLI with multiple functions such as dispersion, emulsification, stirring, etc.; this equipment is suitable for medium, high viscosity
Plateform Multi-Shaft Mixer
This platform multi-shaft mixers are suitable for high-viscosity or high-dispersion mixing equipment. A combination of multiple mixing methods can be used to complete the mixing and dispersion process faster and more fully.

Guidelines For Multi-Shaft Mixer

Muti shaft mixer is widely used in middle and high viscosity materials. It applies to materials with viscosity below 100000 cps and is suitable for the dispersion and mixing of coatings, inks, putty, adhesives, agricultural materials, lithium battery slurry, and other materials

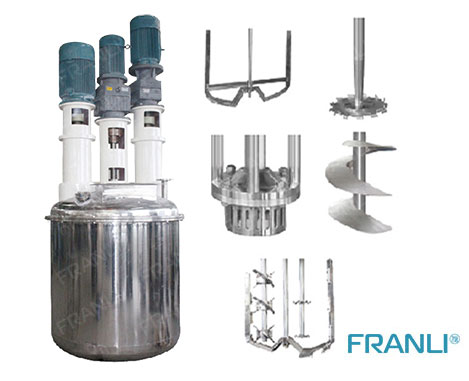

How many kinds of shaft mixers for a multi-shaft mixer?

FRANLI offers the design of a high-speed disperser, three wing anchor, homogenizer for emulsification, and high viscosity mixer with scrapper. The tank is designed by the jacket, coil, or half coil. You can connect with a heating system or cooling system according to your material features.

What are the advantages of the multi-shaft mixer?

Hydraulic control lifting, totally grinding, mixing, dispersing high viscosity material. VFD controls the speed of high speed disperser. Other two motors with reducers. We choose the brand’s main parts, such as WN/SIEMENS motor, NORD/SEW reducer, Schneider electricity, and the stainless steel polished as mirror surface inside of the tank. Our FRANLI machine has no blind space, totally mixing and dispersing, and also easily discharging.

How much viscosity material is suitable for this type of multi-shaft mixer?

The range of viscosity is 10,000cps – 2,000,000cps, cream mixing, vulcanization, dispersing, milling, and polymerization processing. Silicone sealant, PU sealant, mechanical sealant, liquid silicone, PTV, Electronic sealant, ink, pigment, dye, electronic paste, resin, plastics, toothpaste, etc.

FRANLI has two types of the multi-shaft mixer, one is standing floor hydraulic lifting, this type of multi-shaft mixer is easy to move the tanks on the floor. You may need to purchase the hydraulic discharging machine with the filling machine together. Also has a tank with lugs to support the floor. This tank is fixed, and discharging by itself weight, or discharging by the pump. Which is most suitable for your factory, you may discuss with us before ordering this multi-shaft mixer.

What key points you should focus on?

1) the tank quality is important, if not round totally, which tank can not discharge well, can not vacuum, or mix well. Some customers want to save the cost, some factories save cost on the tank, but this simple tank, while a key point for high viscosity mixer. Pls don’t save small costs, and pay huge for future machines.
2) Heating system by steam, some asked oil heating, while which depends on the features of materials, if you want to cool and heating both on one system, pls go to choose the steam by water also cooling by the chiller.
3) Also has some other key points that you need to focus on, welcome to connect with us, we would like to share our experience with you.
Plateform Multi-Shaft Mixer
Guidelines For Multi-Shaft Mixer

What is a Multi-Shaft Mixer?

A multi-shaft mixer is a type of industrial mixer that has more than one mixing shaft. These mixers are designed to mix multiple ingredients simultaneously, allowing for more efficient and effective mixing.

Contact ➔

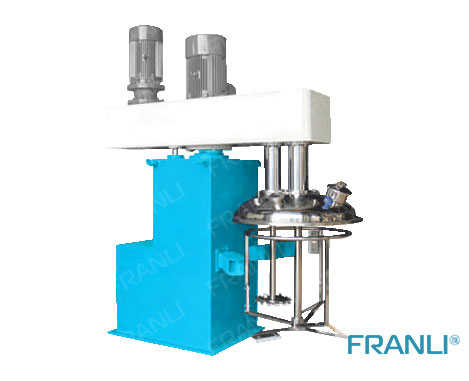

Dual Shaft Mixer
Guidelines For Multi-Shaft Mixer

Dual Shaft Mixer – Dispersion & Stirring

The dual shaft mixer is the best mixer to dissolve the specific ingredients with appropriate shear capacity. This activity is performed by the high-speed shafts situated in the mixer and provides you with the perfect uniformity of the product. It also contains an Anchor agitator and a High-Speed Disperser that offer you the best quality and consistency.

Contact ➔
Triple Shaft Mixer
Guidelines For Multi-Shaft Mixer

Triple Shaft Mixer | anchor type, butterfly type & frame type

The FRANLI triple shaft mixer extends the working area by adding a rotating stator mixer with a large displacement or a second quick distributor. High shear stator and rotary mixer can emulsify and homogenize products that require higher shear forces to reduce particles into smaller sizes.

Contact ➔
