High Speed Disperser

High Speed Dispersers can mix, dissolve and disperse two or more kinds of liquid and powder material. It can both works single and together with some other sand mill.

  • Non-grade speed adjustment by frequency converters
  • hydraulic elevating
  • working steadily
  • use and maintenance expediently.

Application:

Suitable for producing paint, ink, coating, dyestuff, paper making and so on in chemical industry, the mixers are used for wet dispersing and mixing liquid-solid material.

Advantages of High Speed Disperser

  • low grinding fineness
  • Wide range of applications
  • high working efficiency

Application

Coating

Cosmetic

Battery

Battery

Graphite

Graphite

Agrochemistry

Agrochemistry

Adhesives

Adhesives

Hot sale High Speed Disperser

Technical Parameter

Parameters of HSD High Speed Disperser

Guidelines For High Speed Disperser

A high speed disperser is an important piece of equipment in the production of industrial materials. Its function is to stir materials at high speed to achieve a fully dispersed effect and meet the needs of production. There are many types of dispersers. Different types of dispersers have different dispersing effects and are mainly used. In the production of various types of coatings, such as the production and processing of dyes, inks, emulsions, cosmetics, and pigments, it plays the role of dispersing materials.

high speed disperser

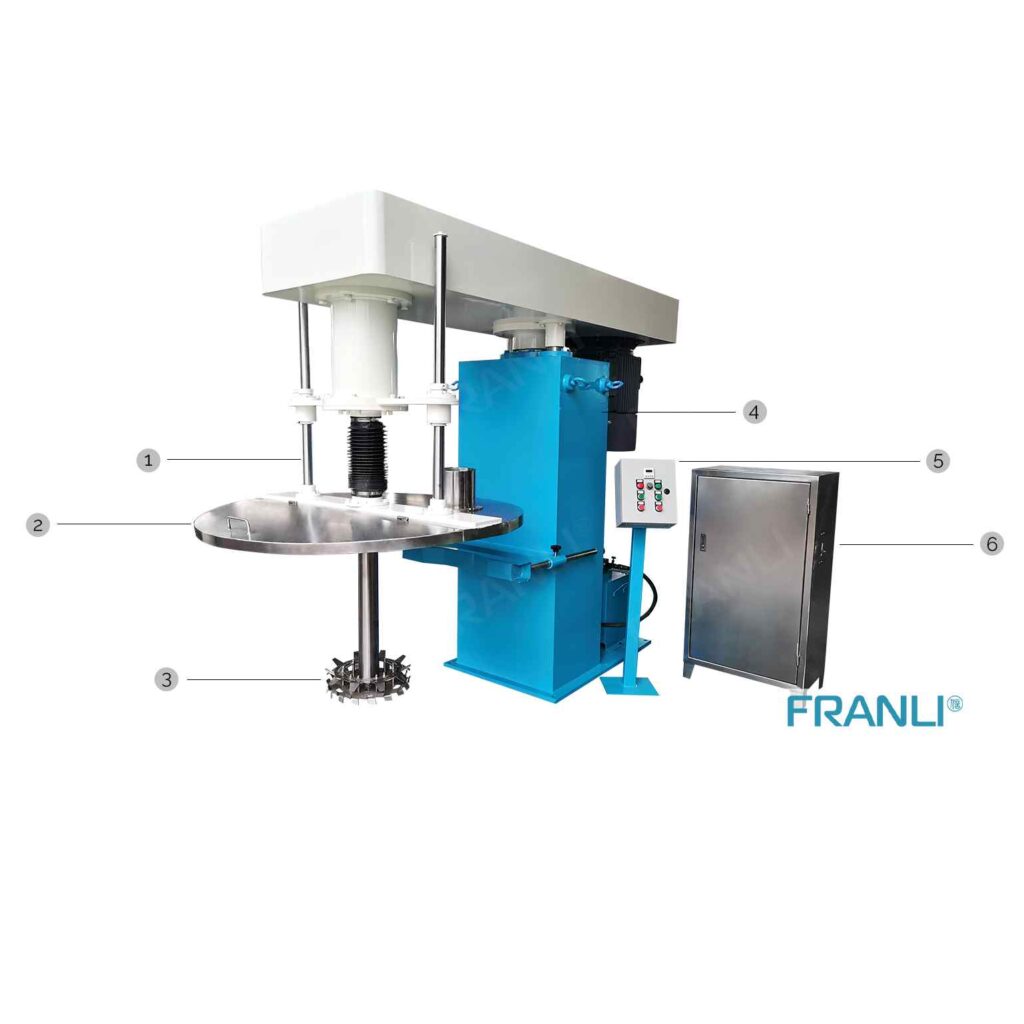

1. Auto Adjusted S For Tank

2. Stailess Steel Cover

3. Double Layer Disc

4. Square Pail

5. Operation Terminal

6. SS Electrical Cobtrol Box

high speed disperser

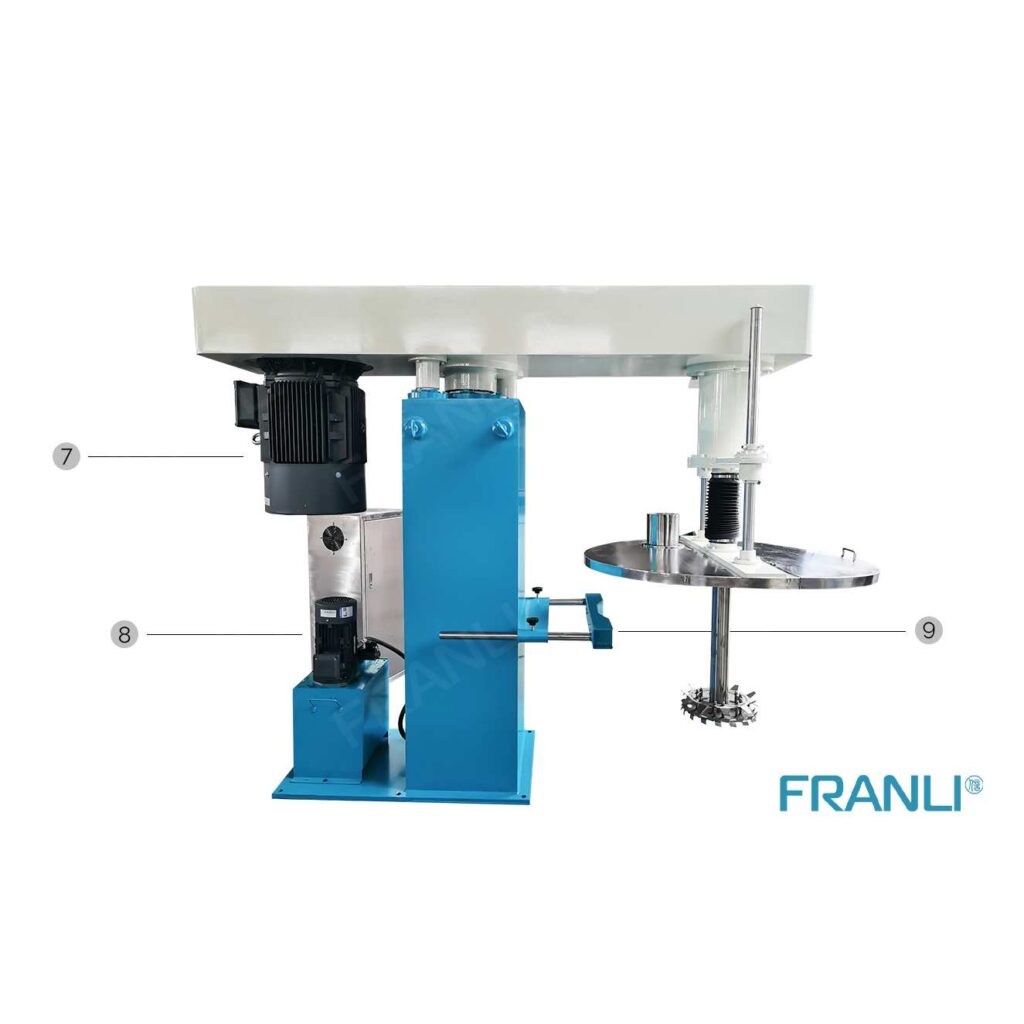

7. SEMENS Motor

8. Hydraulic Station

9. Holding Clip

abb

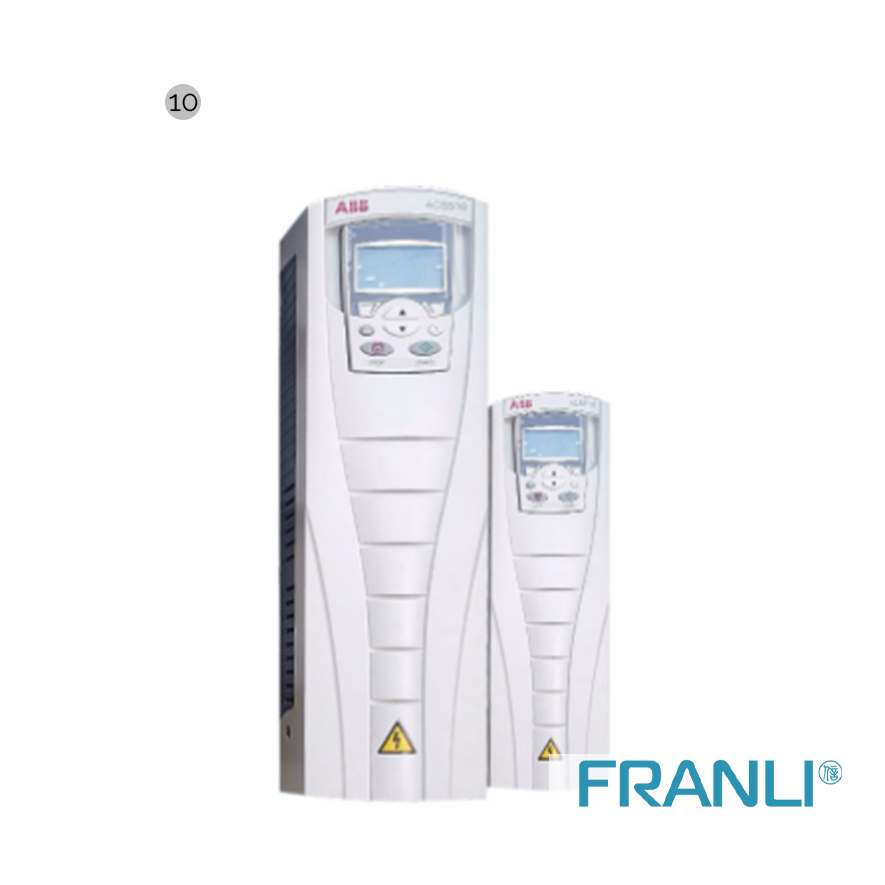

10. ABB inverter

Architectural waterproof coating production equipment.The preparation process of the high-speed disperser machine mainly includes the dispersion of pigments and fillers, grinding, coating preparation, toning, etc. The main equipment is high-speed dispersing machine, three roll mill, and colloid mill.

The base materials used in the high-speed disperser machine of building waterproof coating production equipment can basically be divided into two types: synthetic emulsion and solvent-based resin collectively referred to as synthetic resin. Except for some synthetic resins that must be provided by professional resin manufacturers, most of them can be produced by coatings. Prepared by the enterprise itself. The production of synthetic resins mainly undergoes two processes, a polymerization process, and a heat transfer process. The equipment involved is mainly a reactor and a heat transfer device.

high-speed disperser machine for paint, also known as paint dispersion machine, which used for coatings, paints, latex paints, putty paste, glue, resins, interior, and exterior wall coatings, anticorrosive and waterproof coatings, construction industry, pulp, adhesives, paper industry, fungicides, seed coating agents. It is one of the main production equipment in the pesticide industry, even the textile industry of coal flotation agents. It has high-efficiency dispersion and mixing efficiency. Water-based and oily material equipment. This type of equipment can be customized with different functions and specifications according to customer requirements…

Working characteristics of high-speed disperser machine

1 . The strong centrifugal force throws the material into the narrow and precise gap between the stator and the rotor from the radial direction. At the same time, the material is initially dispersed by the combined forces of centrifugal extrusion, liquid layer friction, and hydraulic impact.

2 . The high-speed disperser machine’s rotating rotor of the dispersing machine produces a linear velocity of at least 15m/s. The material is fully dispersed and broken under the action of strong hydraulic shear, liquid layer friction, tearing, and collision, and at the same time, it is ejected at high speed through the stator slot.

3 . The material of the high-speed disperser machine is continuously ejected from the radial direction at a high speed, and the flow direction is changed under the resistance of the material itself and the container wall. At the same time, under the action of the upper and lower axial suction force generated by the rotor area, the upper and lower sides are formed. Strong turbulent turbulence. After several cycles of materials, the dispersion process is finally completed.

Emulsifying and dispersing machine: Emulsifying and dispersing machine is a high-speed disperser machine and grinding dual-purpose machine for experiments. It is suitable for mixing, dissolving and dispersing various liquids in the laboratory, as well as dissolving and dispersing and grinding high-viscosity materials. It is widely used in dispersion experiments in various pigments, coatings and other industries, providing basic data for scientific research, pilot trials and mass production, and providing scientific process basis for scientific research. The working principle of the emulsifying and dispersing machine is to make the fineness of the material evenly distributed through the emulsification, mixing and dispersion of the material, and the powerful high-speed shearing function can make the product reach the emulsification and dispersion requirement in a short time. The emulsifying and high speed disperser machine is suitable for the emulsification, mixing and dispersion of materials in the industries of paint and ink, food, cosmetics, medicine, pesticides, and paper making.

Emulsifying and dispersing machine: Emulsifying and dispersing machine is a high speed disperser machine and grinding dual-purpose machine for experiments. It is suitable for mixing, dissolving and dispersing various liquids in the laboratory, as well as dissolving and dispersing and grinding high-viscosity materials. It is widely used in dispersion experiments in various pigments, coatings and other industries, providing basic data for scientific research, pilot trials and mass production, and providing scientific process basis for scientific research. The working principle of the emulsifying and dispersing machine is to make the fineness of the material evenly distributed through the emulsification, mixing and dispersion of the material, and the powerful high-speed shearing function can make the product reach the emulsification and dispersion requirement in a short time. The emulsifying and high speed disperser machine is suitable for the emulsification, mixing and dispersion of materials in the industries of paint and ink, food, cosmetics, medicine, pesticides, and paper making.
